Tester Operation

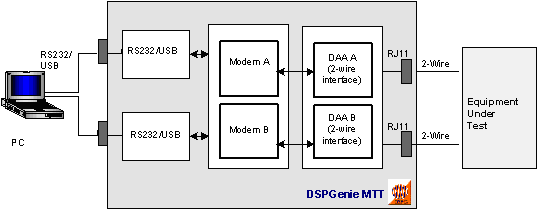

This DSPGenie MTT is pre-set and configured for 2-wire PSTN network as presented in the below Figure:

asd14

Figure: DSPGenie MTT with DAA interfaces

The DAA interface can be used in the lab conditions or with real PSTN networks. All the necessary network progress tones can be monitored and reported by the DSPGenie MTT.

The recognisable line conditions include:

  • No dial tone
  • Busy
  • Ringing

The DSPGenie software suite consists of two packages: client application with LabView based Graphical User Interface and server application designed to perform the modem transmission tests when used in conjunction with the DSPGenie hardware.
The software allows the user to configure and set up each parameter of the testing procedures through the client’s GUI. A single test or sequence of tests may be selected, and may be run completely automatically without any further user intervention.
